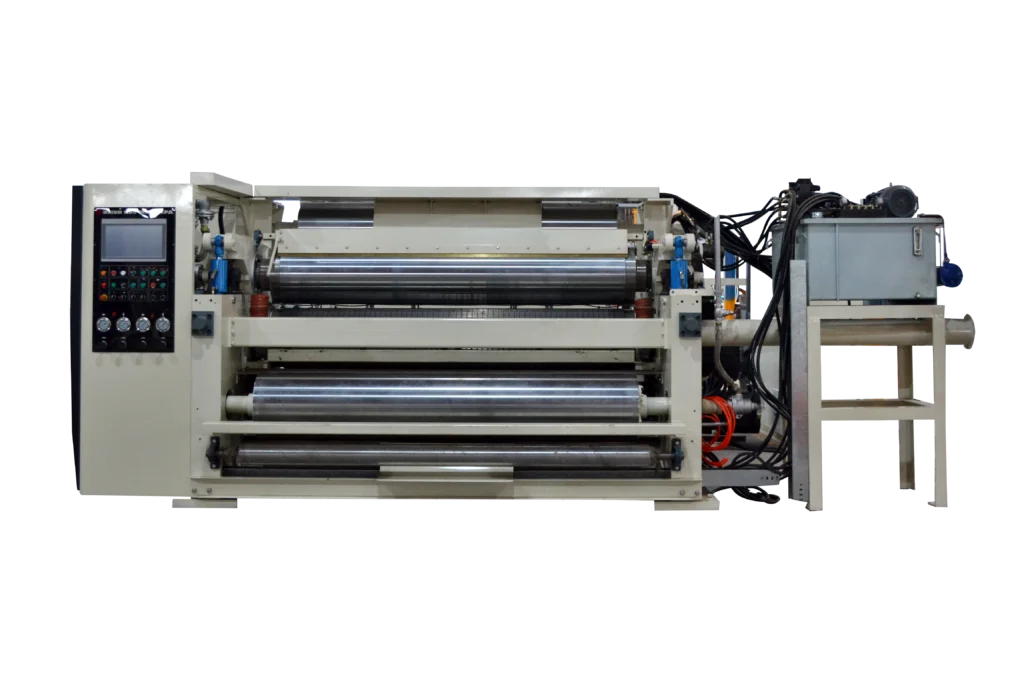

MULTI-CASSETTE NEGATIVE PRESSURE SINGLE FACER MSF-25PA
MULTI-CASSETTE NEGATIVE PRESSURE SINGLE FACER
A bottom drawer-type single facer built for fast roll changeover — gearless box design, negative-pressure (vacuum) hold-down, and support for A, B, C and E flute profiles at speeds up to 250 m/min.
FORMAT FLEXIBILITY
Corrugating rolls are available for A, B, C and E flute profiles, so the same machine platform can be configured for the board types your customers order.
FLUTE PROFILE
FLUTE PROFILE
FLUTE PROFILE
FLUTE PROFILE
CONSISTENT FLUTE AND GLUE CONTROL
Beyond the quick-change system, the roll and glue station specs are built to hold tight, repeatable tolerances at speed.
Independent-Drive Pressure Roll
394mm carbon steel pressure roll with its own transmission, surface precision-ground and chrome-treated.
Chrome-Plated Glue & Doctor Rolls
315mm glue roll and 180mm doctor roll, both steel with ground, chrome-plated surfaces for even glue transfer.
Liner Preheating Drum
500mm preheating drum for liner; below it, the corrugating roll and pressure roll run on imported lubricating oil.
Hydraulic & Electric Pressure Control
Upper corrugating roll pressure is adjusted hydraulically; pressure roll pressure is adjusted electrically.
Speed-Compensated Glue Gap
The gap between glue roll and doctor roll adjusts automatically as line speed changes.
Digital Micro-Gap Indication
Motorized adjustment with digital read-out on the lower corrugating roll–pressure roll, glue roll–lower roll, and doctor roll gaps.
TECHNICAL SPECIFICATIONS
Core roller, drive and control specifications for the MSF-25PA. Working width and full motor specifications are configured to order — contact us for a specification matched to your line.
| PARAMETER | SPECIFICATION |
|---|---|
| Machine Type | Multi-Cassette Negative Pressure Single Facer |
| Roll Change | Bottom drawer type quick roll change, gearless box type |
| Max Design Speed | 250 m/min |
| Flute Profiles | A, B, C and E (optional) |
| Pressure Roll | Ø394mm, carbon steel, independent transmission, precision ground & chrome-treated |
| Glue Roll | Ø315mm, steel, chrome-plated |
| Doctor Roll | Ø180mm, steel, precision ground & chrome-treated |
| Preheating Drum for Liner | Ø500mm; corrugating and pressure roll lubricated by imported oil |
| Pasting Part | Retracts 700mm from main engine; independent motor, can idle during a temporary halt |
| Pressure Adjustment | Upper corrugating roll — hydraulic; pressure roll — electric |
| Gap Control | Glue roll–doctor roll auto-adjusts with speed; lower roll–pressure roll, glue roll–lower roll and doctor roll gaps motorized with digital read-out |
| Glue Dam | Automatic paper width setting with manual fine tuning; self-cleans glue roll when moved |
| Blower | 22kW — 1 set |
| Controls | Image display, touch switch, 45kW A.C. inverter motor |
