N.C. HELICAL CUT-OFF（DOUBLE DRIVE）
Hsieh Hsu N.C. Helical Cut-Off (Double Drive) is designed for high-speed corrugated board production lines, delivering precise sheet cutting, stable operation, and efficient order changes. Available in NC-C110H, NC-C128H, and NC-C158H, the series offers multiple performance options to match different production capacities while maintaining excellent cutting accuracy and long-term reliability.

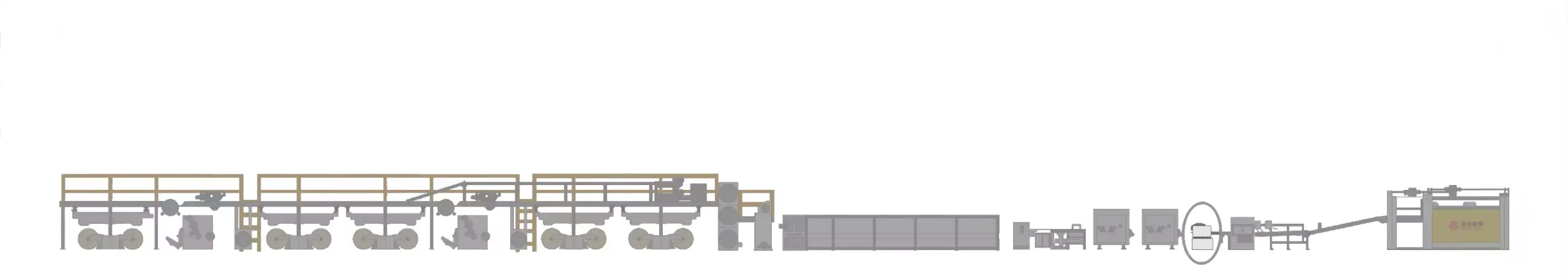

Integrated into a Complete Corrugated Board Production Line
N.C. Helical Cut-Off is installed after the N.C. Slitter Scorer in a corrugated board production line, where it accurately cuts corrugated sheets to the required length before they are transferred to the downstream stacking system.
Key Features
Double AC Servo Drive System
Powered by dual AC servo motors and servo drives, the machine delivers stable transmission, accurate synchronization, and reliable cutting performance across different production speeds.
High-Speed Cutting & Automatic Order Change
Designed for continuous corrugator operation, the machine supports high mechanical speeds and automatic order changes, helping reduce downtime and improve production efficiency.
Precision Cutting Control
The NC control system works with dual measuring wheels to achieve cutting accuracy of ±1.0 mm while storing up to 99 production orders for fast job switching.
Optimized Helical Blade Structure
The lightweight hollow blade shaft and helical blade design reduce cutting resistance, improve transmission efficiency, lower power consumption, and extend blade service life.
Convenient Blade Maintenance
The machine allows quick blade removal for maintenance and supports reverse blade grinding to help extend blade service life and reduce maintenance time.
Specifications
| Item | NC-C110H | NC-C128H | NC-C158H |
| Servo Motor | 2 × 55 kW | 2 × 64 kW | 2 × 78 kW |
| Servo Drive | 2 pcs | 2 pcs | 2 pcs |
| Max. Mechanical Speed | 250 m/min* | 350 m/min | 350 m/min |
| Order Change Speed | 120 m/min | 300 m/min | 300 m/min |
| Cutting Length | 500–9999 mm | 500–9999 mm | 500–9999 mm |
| Cutting Accuracy | ±1.0 mm | ±1.0 mm | ±1.0 mm |
| Memory Capacity | 99 Orders | 99 Orders | 99 Orders |
| Measuring System | Dual Measuring Wheels | Dual Measuring Wheels | Dual Measuring Wheels |
| Blade Shaft | Hollow Steel Shaft | Hollow Steel Shaft | Hollow Steel Shaft |
| Operating Temperature | 0–45°C | 0–45°C | 0–45°C |

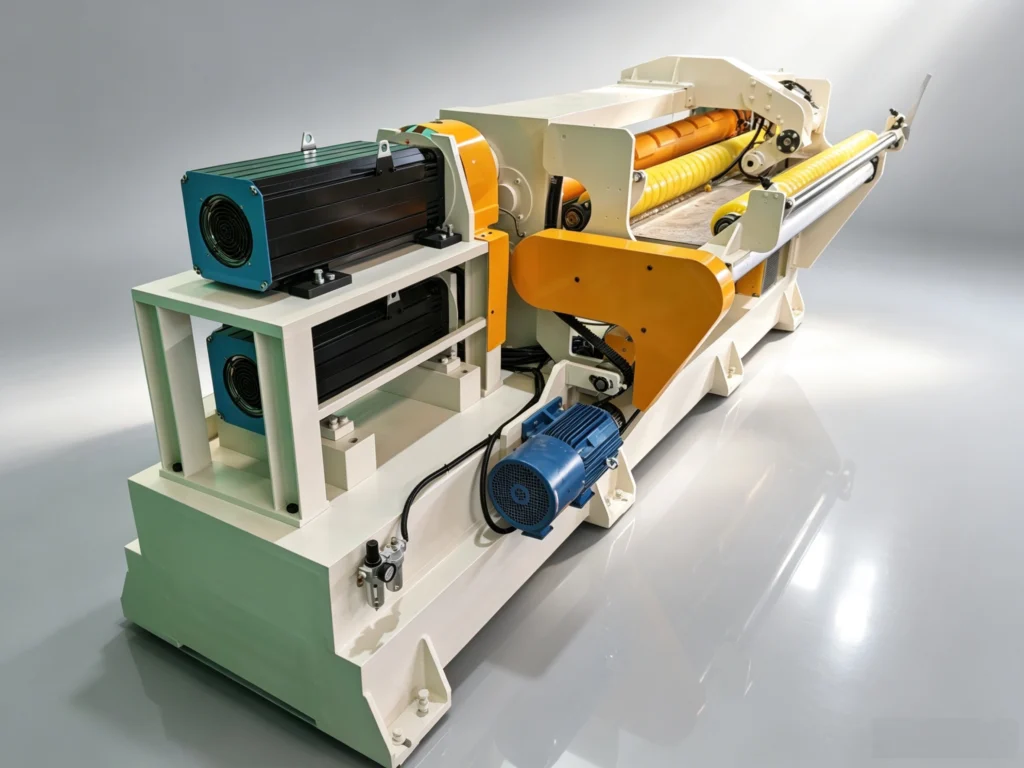

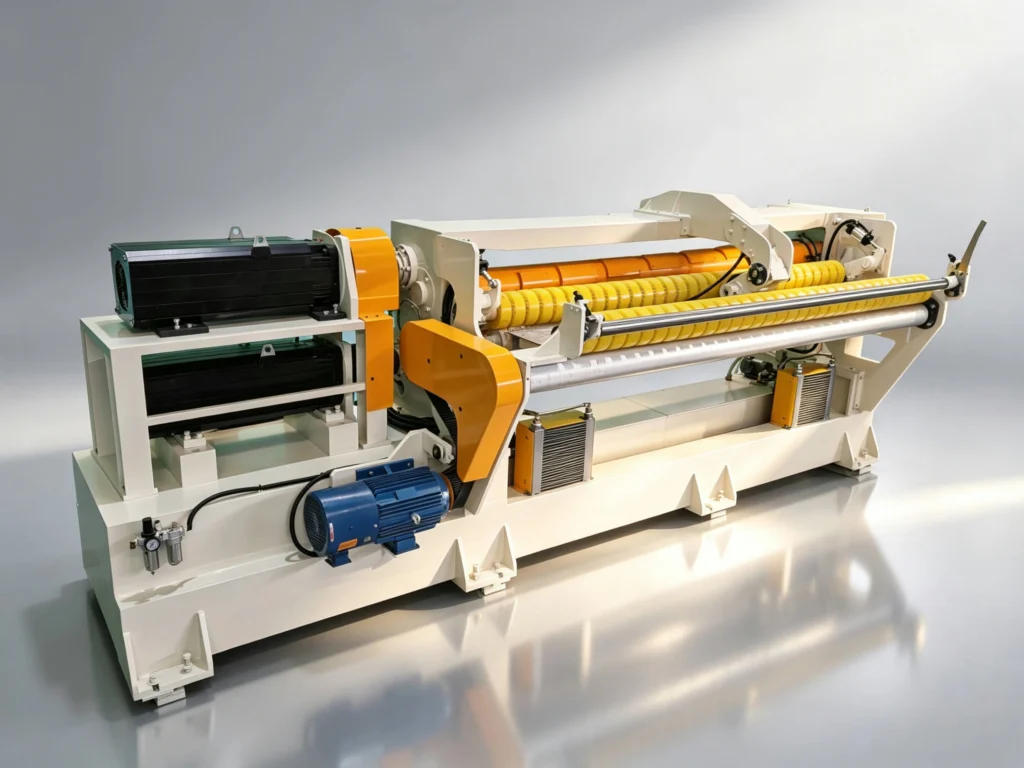

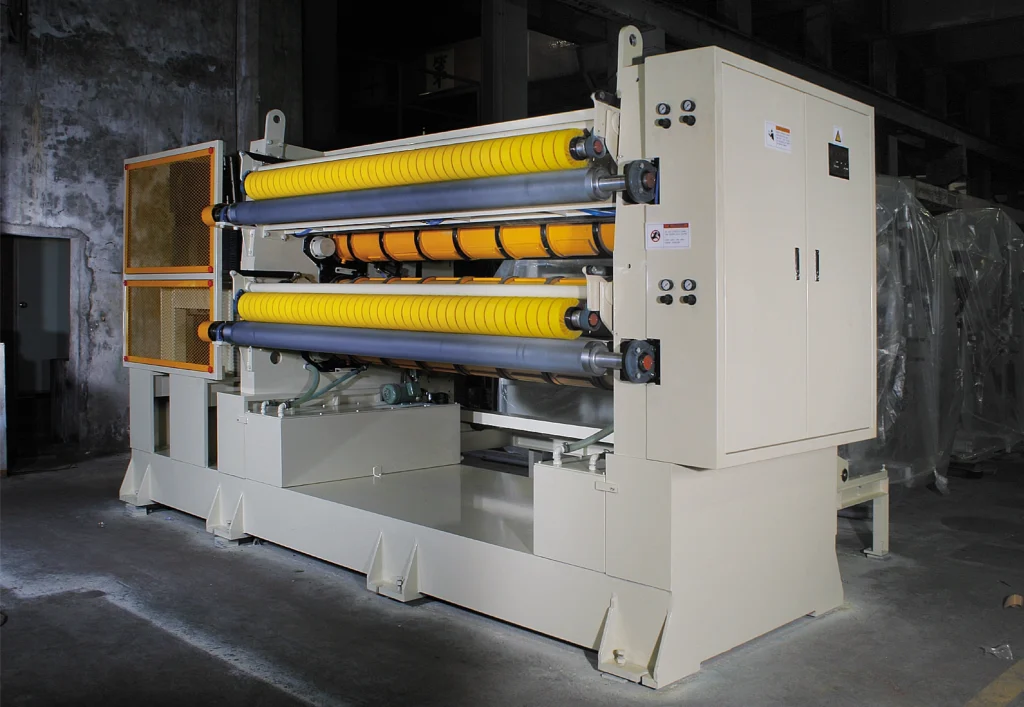

N.C. Helical Cut-Off Machine GALLERY
Browse the N.C. Helical Cut-Off product gallery to explore different machine views, overall design, and engineering details for high-speed corrugated board cutting applications.
