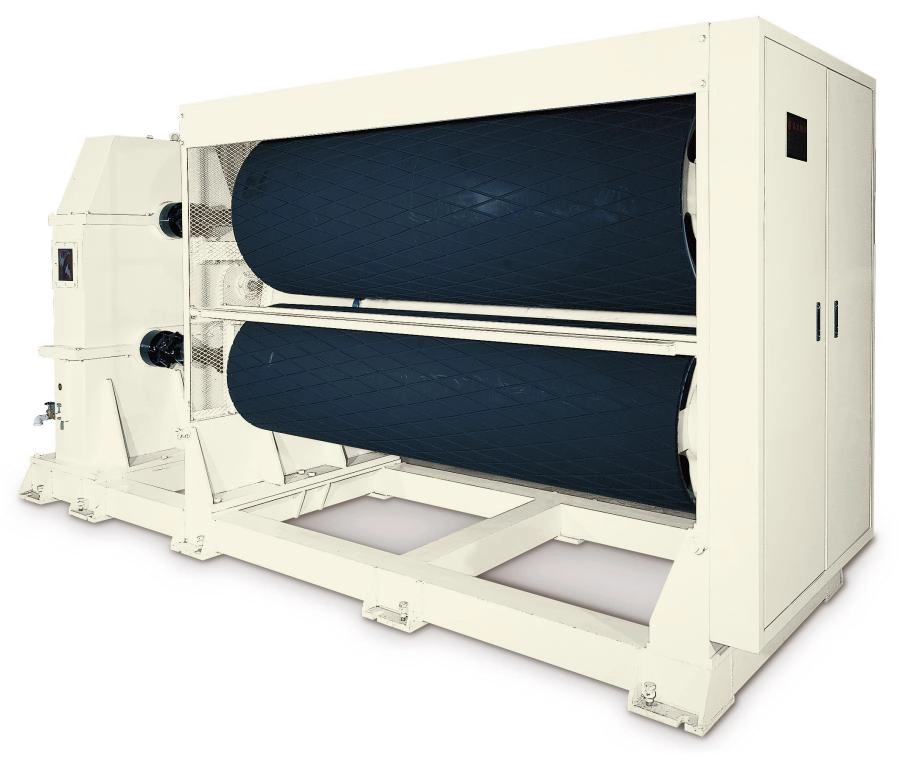

DRIVE ROLL STAND DR-5
DRIVE ROLL STAND
A configurable drive roll stand built for high-speed corrugator lines — choose the belt and drive combination that matches your speed, sheet weight, and duty cycle.
Ø850mm
UPPER ROLL
Ø650mm
LOWER ROLL
1 UNIT
INDEPENDENT GEARBOX
3 OPTIONS
DRIVE CONFIGURATION
THE SAME CORE, TUNED TO YOUR LINE SPEED
The DR-5 shares its core geometry with the rest of the Hsieh Hsu drive roll range — an Ø850mm upper roll over an Ø650mm lower roll, each wrapped in a non-slip belt or rubber surface for consistent grip through the wet end.
What sets the DR-5 apart is configurability: it ships with a choice of belt and drive arrangement, so the stand can be specified against your actual line speed and sheet weight rather than a fixed default.
As with the rest of the range, upper and lower roll shafts are dischargeable and each roll runs off its own independent gearbox, transported through universal joints — maintenance stays simple regardless of which drive option is fitted. roll shafts pull out as dischargeable assemblies — no need to dismantle the stand frame, which keeps scheduled maintenance short and predictable.
KEY FEATURES
Core mechanical features carried across the drive roll stand range, ahead of the DR-5’s configurable options below.
UPPER ROLL — Ø850MM
Larger upper roll increases wrap contact with the board for even nip pressure across sheet width.
LOWER ROLL — Ø650MM
Matched lower roll counters the upper roll to hold sheet tracking steady as speed changes.
NON-SLIP BELT / RUBBER
Roll surface is wrapped in non-slip belt or rubber, holding grip on the board face at speed.
DISCHARGEABLE SHAFTS
Upper and lower shafts release as complete assemblies — no full stand teardown for routine service.
INDEPENDENT GEARBOX
One dedicated gearbox per stand, delivering isolated drive with no shared load path.
UNIVERSAL JOINT DRIVE
Upper and lower rolls are transported independently through universal joints, staying in sync.
DRIVE ROLL STAND OPTION ITEM
Three configurations, from a straightforward belt upgrade to full servo double drive. Select one to compare — our engineers will confirm fit against your board width and speed.
An upgraded imported non-slip belt is fitted to the machine’s conveyor bed. The belt’s non-slip surface ensures stable feeding and prevents sheets from shifting during the production process.
- Non-slip surface ensures stable feeding
- Prevents sheets from shifting during production
- Suitable for high-speed, high-precision production environments
- Ideal for general-purpose, moderate-speed production lines
Upper and lower rollers each have their own motor, which can be controlled independently. This design provides more stable power transmission and allows for precise speed regulation.
- Independent motor control for upper and lower rollers
- More stable power transmission at high speeds
- Precise speed regulation for different production requirements
- Suitable for high-speed, high-precision production lines
Servo motors on both rollers give closed-loop speed control, ensuring synchronized operation between the upper and lower rollers. This improves feeding accuracy and overall line stability.
- Closed-loop speed control on upper and lower rollers
- Synchronized operation ensures stable transmission
- High feeding accuracy at high production speeds
- Suitable for high-speed, high-precision corrugated board production lines
TECHNICAL SPECIFICATIONS
Core dimensions and drive configuration for the DR-5. Motor power, line speed, and board width are confirmed against your selected drive option.
| UPPER DRIVE ROLL | Ø 850 mm |
| LOWER DRIVE ROLL | Ø 650 mm |
| ROLL SURFACE | Wrapped non-slip belt / rubber, both rolls |
| SHAFT CONFIGURATION | Upper & lower shafts dischargeable for maintenance |
| GEARBOX | 1 × independent unit |
| DRIVE TRANSPORT | Upper & lower rolls, independently, via universal joints |
| CONFIGURATION OPTIONS | 01. Imported non-slip belt · 02. Motor double drive · 03. Servo double drive |
| LINE POSITION | Corrugated board wet end |
