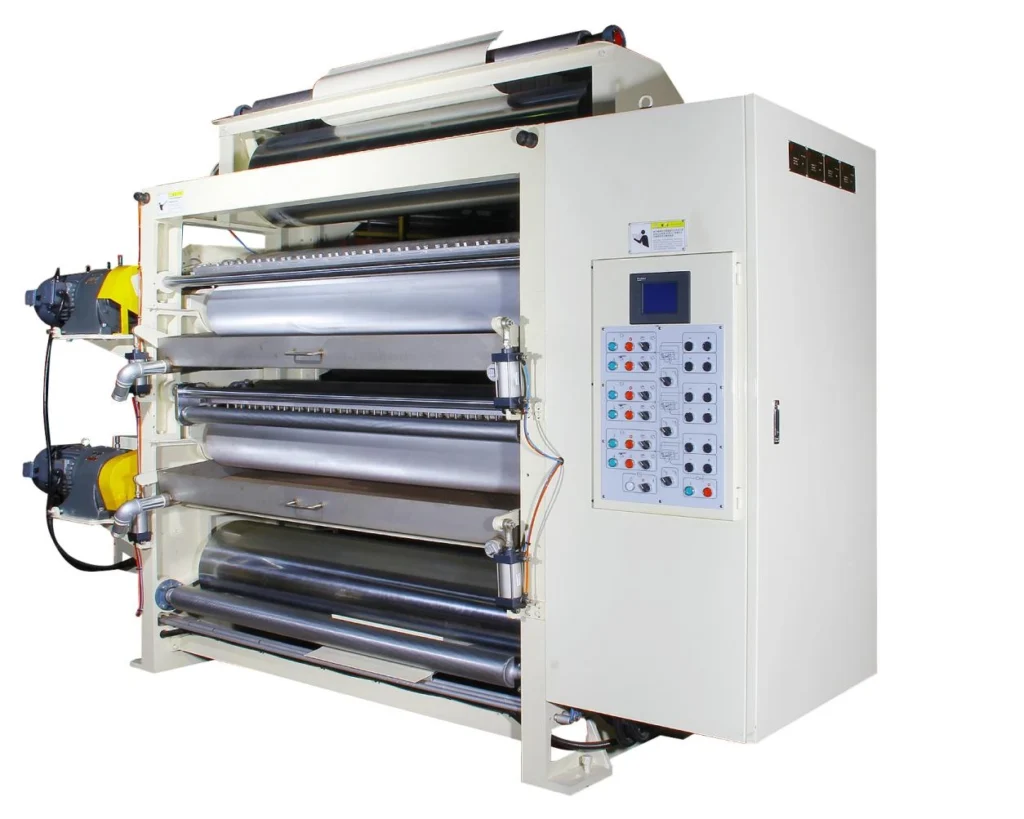

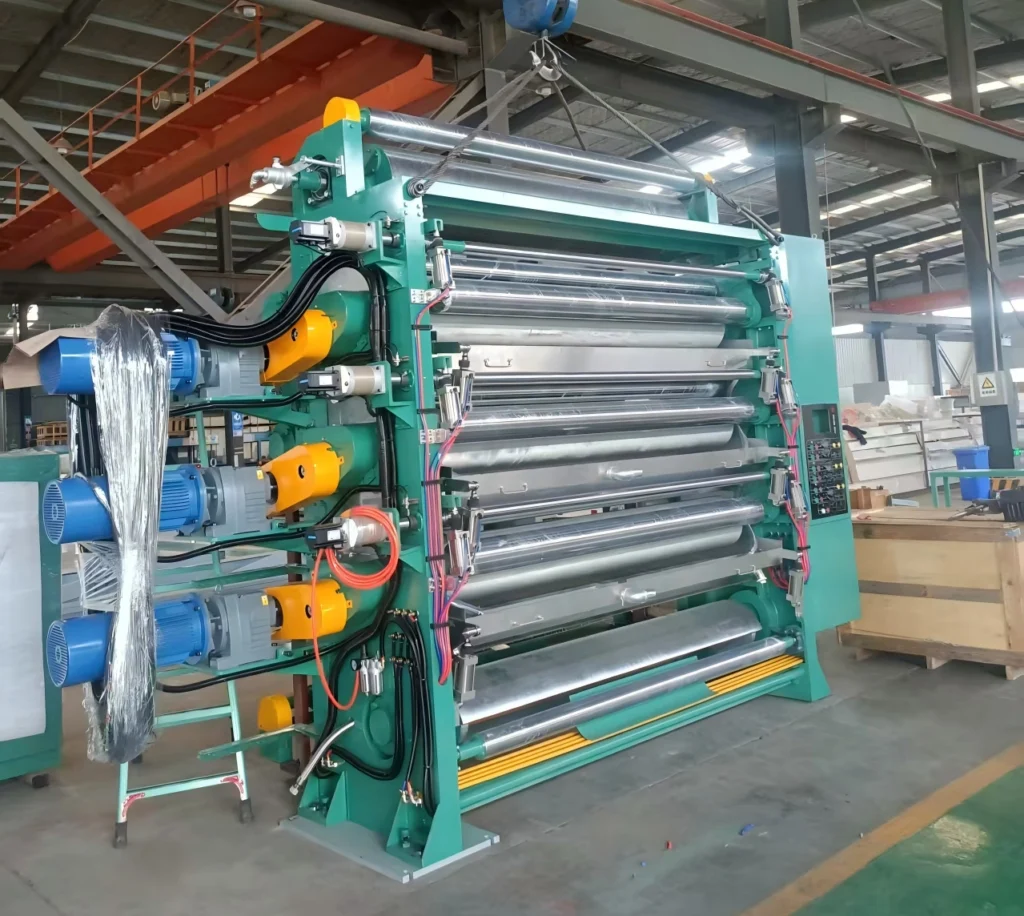

GLUING MACHINE GU-D5AB,GU-T5AB
GLUING MACHINE
A three-roll gluing station engineered for stable, consistent glue transfer on corrugated board lines — chrome-treated rolls, digital micro-gap control, and independent frequency-converted drive.
STANDARD ON EVERY GU-D5AB，GU-T5AB
Every roller in the GU-T8J is machined and finished to hold tight tolerances over long production cycles, so glue thickness stays uniform from the first sheet to the last.
Chrome-Plated Glue Roll
Glue roll surface is engraved and hard chrome-plated for even glue transfer and long service life.
Ground & Chrome-Plated Doctor Roll
Doctor roll surface is precision ground before chrome plating for a stable metering edge.
Pneumatic Pressure Roll
Lift and lower of the pressure roll is pneumatically controlled for quick, repeatable engagement.

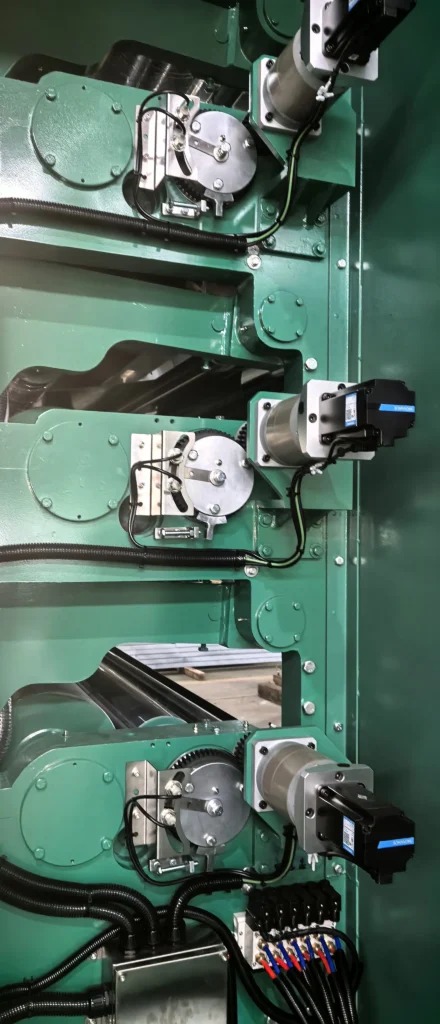

Digital Micro-Gap Adjustment
Electric micro-adjustment with digital indication sets the glue roll–doctor roll and glue roll–pressure roll gaps.
Independent Frequency-Conversion Drive
Independent drive with frequency conversion keeps roller speeds synchronized across the machine.
Split-Casting Rollers
Split-casting glue and doctor rolls simplify removal and replacement, reducing maintenance downtime.
CONFIGURATION OPTIONS
Contact Bar
An optional contact bar keeps glue well mixed within the storage pan, reducing settling and uneven concentration during long runs.
WHY: Simple, low-cost way to keep glue consistency stable without adding electronic controls.
PLC Auto Glue Mixing Device
A PLC-controlled auto glue mixing device manages glue amount effectively, giving programmable, repeatable control over mixing and dosing.
WHY: Suited to plants running multiple glue formulations or that want tighter, automated process control.
TECHNICAL SPECIFICATIONS
Core roller and control specifications for the GLUING MACHINE.
| PARAMETER | SPECIFICATION |
|---|---|
| Machine Type | Corrugated Gluing Machine |
| Glue Roll Surface | Engraved, hard chrome-plated |
| Doctor Roll Surface | Ground, chrome-plated |
| Pressure Roll Actuation | Pneumatic lift/lower |
| Gap Adjustment | Electric micro-adjustment with digital indication (glue roll–doctor roll, glue roll–pressure roll) |
| Drive System | Independent drive, frequency-conversion controlled, synchronized |
| Roller Replacement | Split-casting type — glue roll and doctor roll changed easily |
| Glue Mixing (Optional) | Contact bar for even mixing, or PLC auto glue mixing device for automated dosing |
