SHAFTLESS HYDRAULIC MILL ROLL STAND(MRS—V5)
SHAFTLESS HYDRAULIC MILL ROLL STAND
A swing-type hydraulic shaftless mill roll stand that clamps, positions, and lifts mill rolls by hydraulic control — built to feed your corrugated roller machine line without a manual roll change.
1,600 mm
MAX. PAPER DIAMETER
Swing
STAND TYPE
Air Brake
TENSION CONTROL
2 Types
CHUCK OPTIONS
A SWING-TYPE STAND BUILT AHEAD OF CORRUGATED ROLLER MACHINE
The MRS-V5 hydraulic shaftless mill roll stand holds and unwinds the base paper roll that feeds the single facer — the first station ahead of the corrugated roller machine.
Hsieh Hsu has engineered wet-end stations for corrugated roller machine lines since 1980. The MRS-V5 is our swing-type stand: clamping (open-close), left-right positioning, and lifting-lowering of the roll arm are all hydraulically operated, so an operator changes a roll without manual jacks or chain hoists.
Unwind tension is held by an air brake system with manual adjustment, and a choice of jugged (toothed) or bulgy (expansion) chuck fits the stand to your roll cores. For plants that need to move rolls further or lift heavier cores, the MRS-V5 can be configured with an optional hydraulic railway and hydraulic lift-up, an imported multi-point brake for finer tension control, or our newer stand design.
SWING-TYPE DESIGN, HYDRAULIC FROM CLAMP TO LIFT
From roll clamping to tension control, the MRS-V5 hydraulic shaftless mill roll stand is built so one operator can run a roll change alone — keeping your corrugated roller machine fed without interruption.

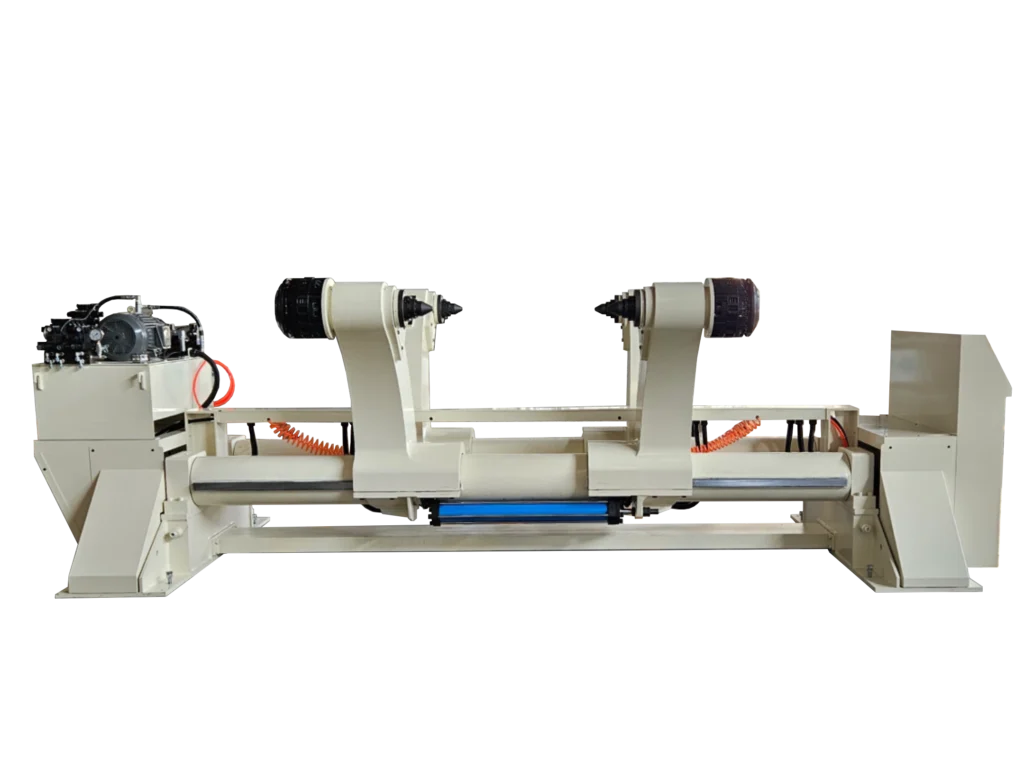

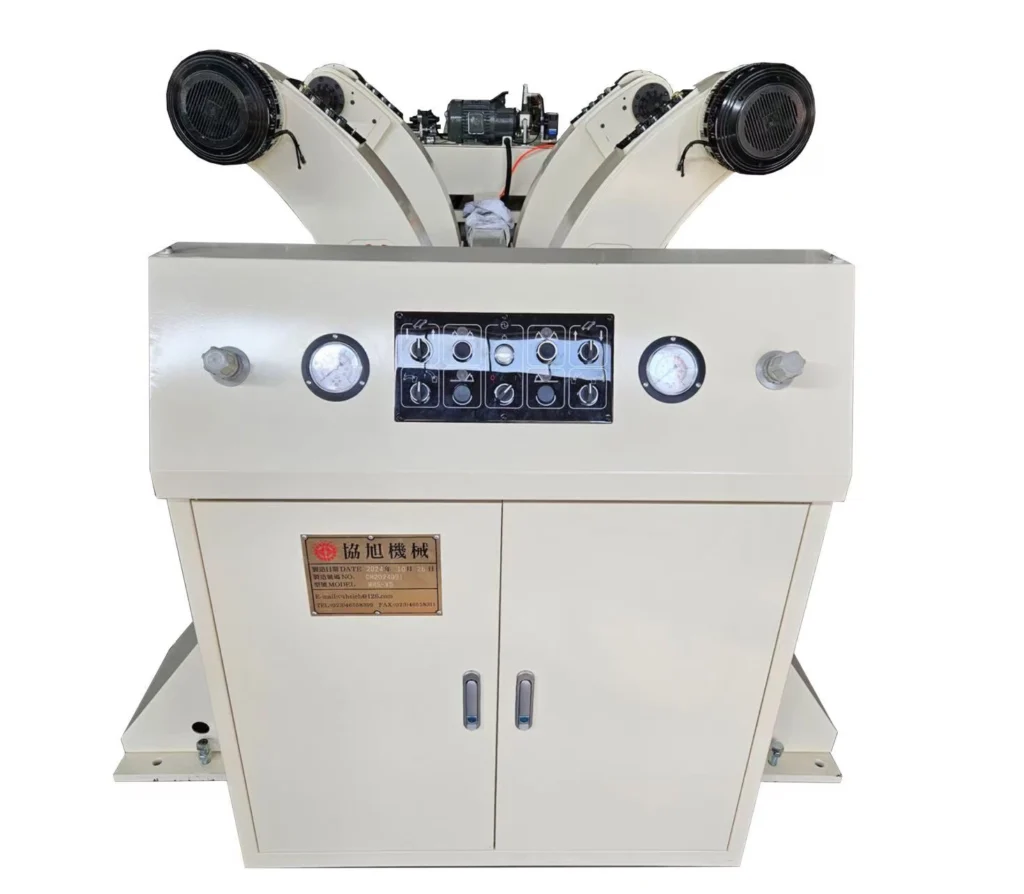

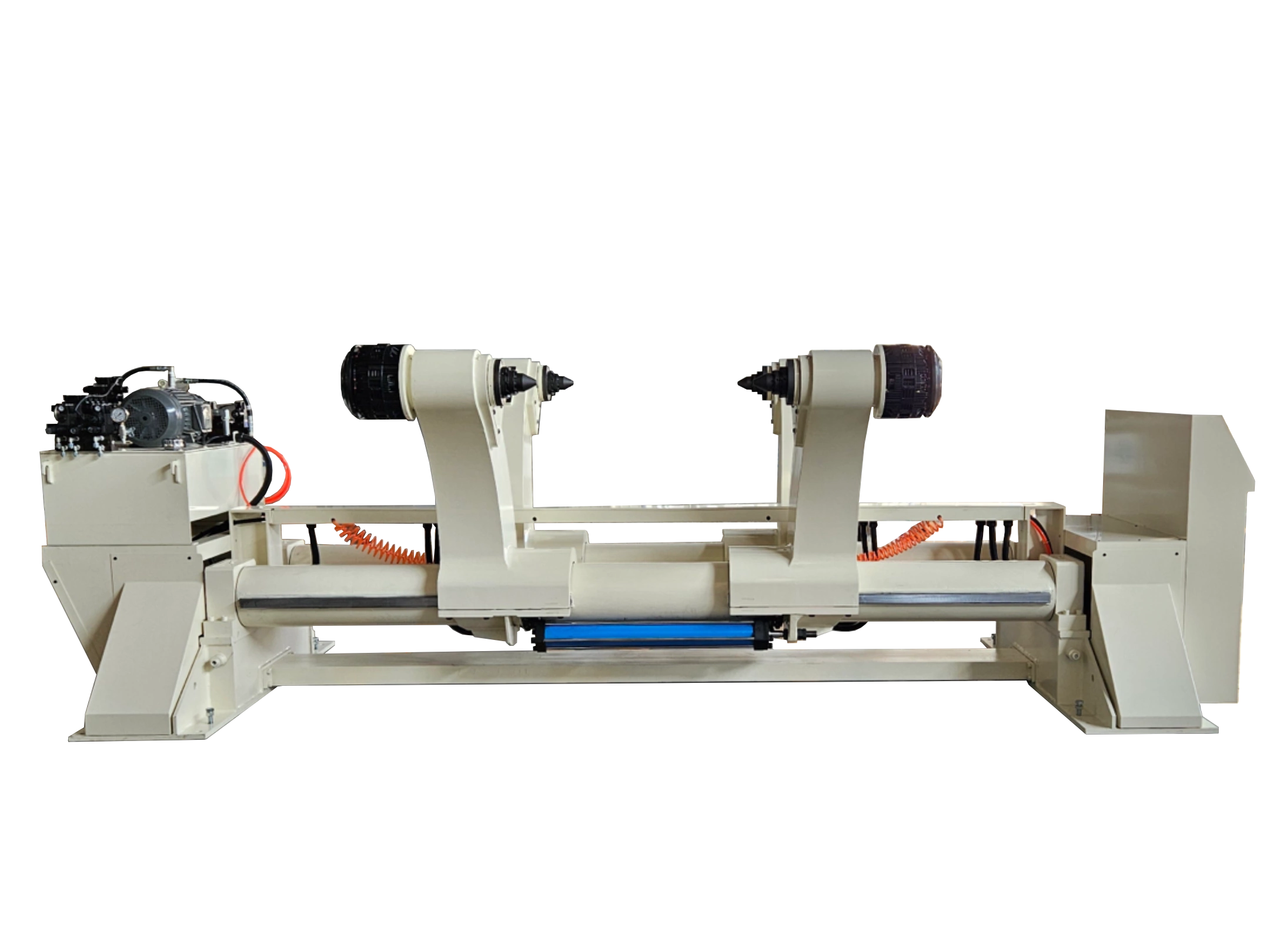

SWING-TYPE ROLL STAND
The arm swings the mill roll into working position, giving the MRS-V5 a compact footprint for plants that can’t fit a fixed dual-arm stand.

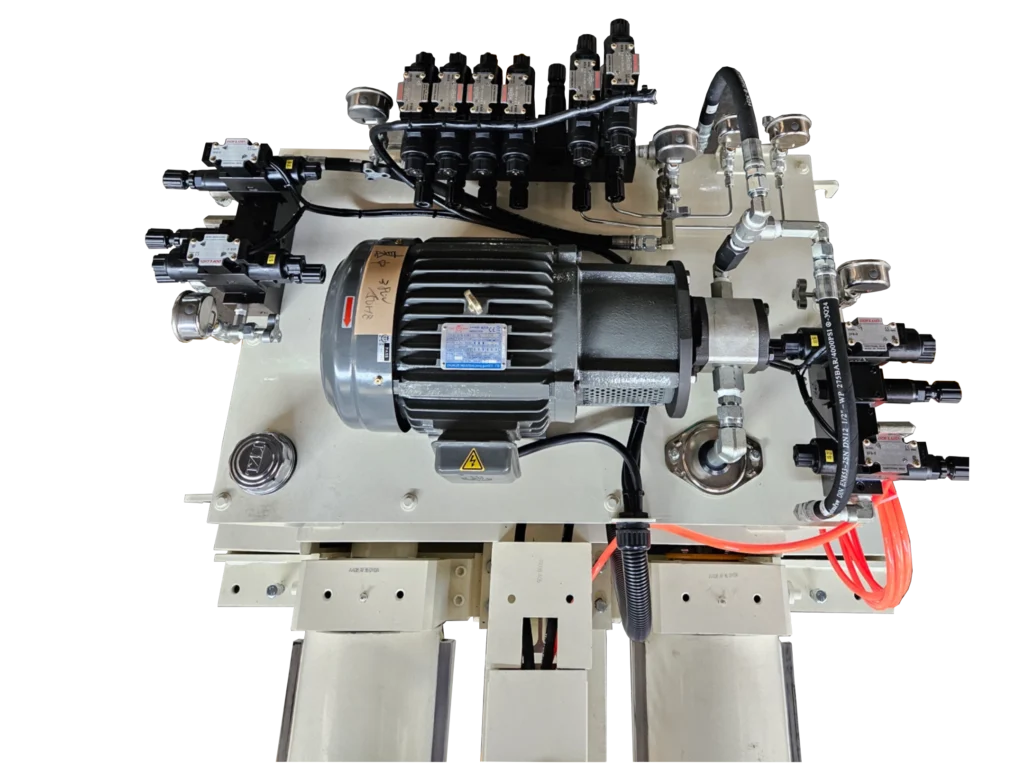

FULL HYDRAULIC CLAMPING & LIFT
Open-close clamping, left-right positioning, and lift-lowering of the roll arm are all hydraulically driven — no manual cranking or chain hoist.

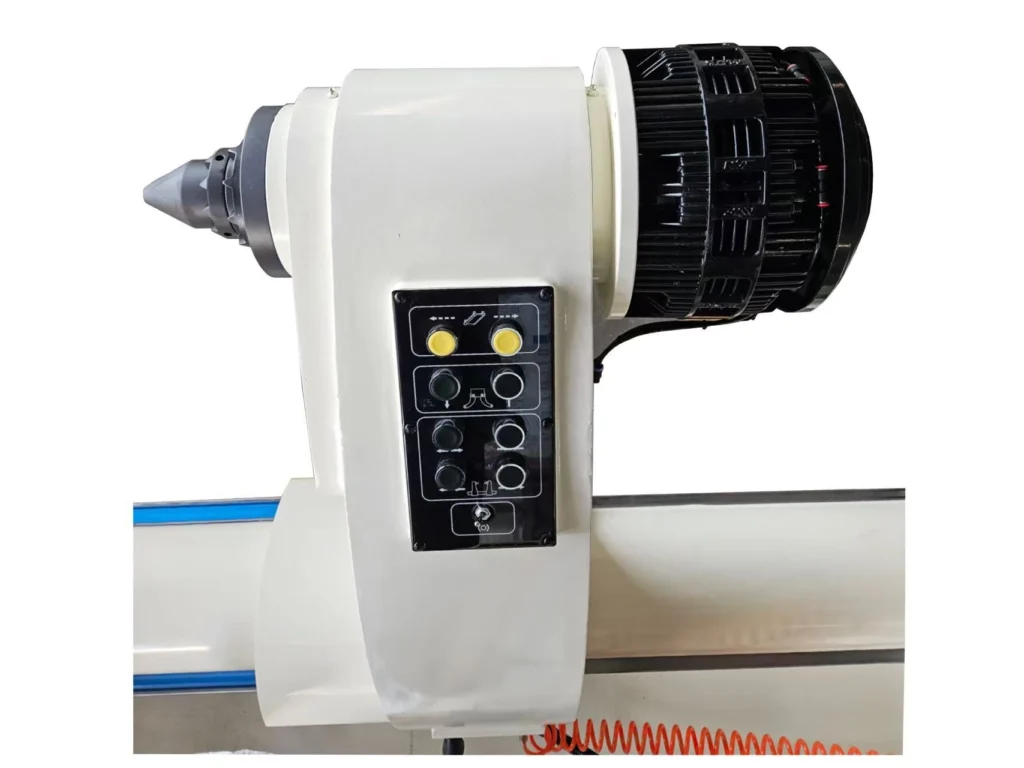

AIR BRAKE TENSION CONTROL
A manually adjustable pneumatic brake holds consistent unwind tension as the roll pays out, up to a max. paper diameter of 1,600 mm.

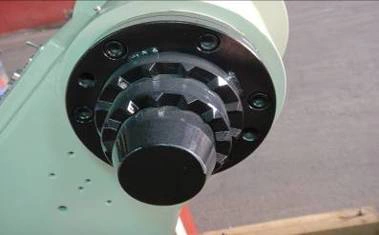

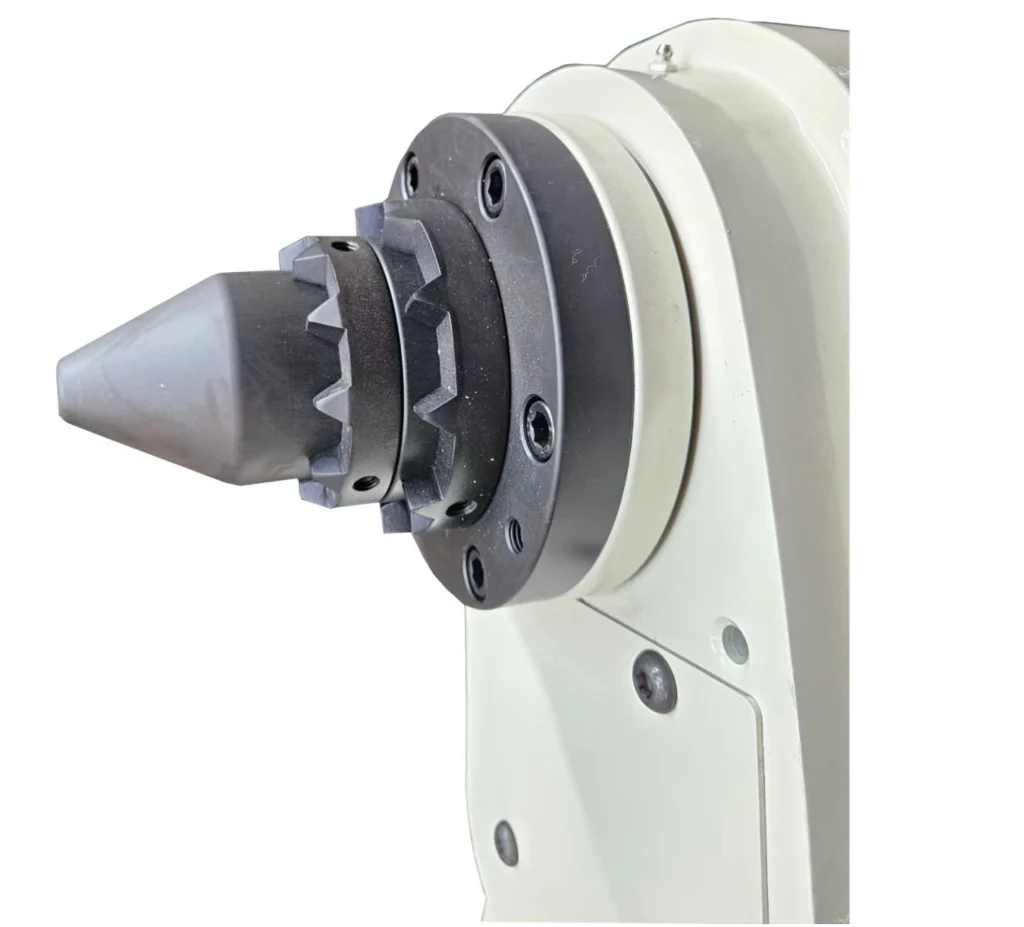

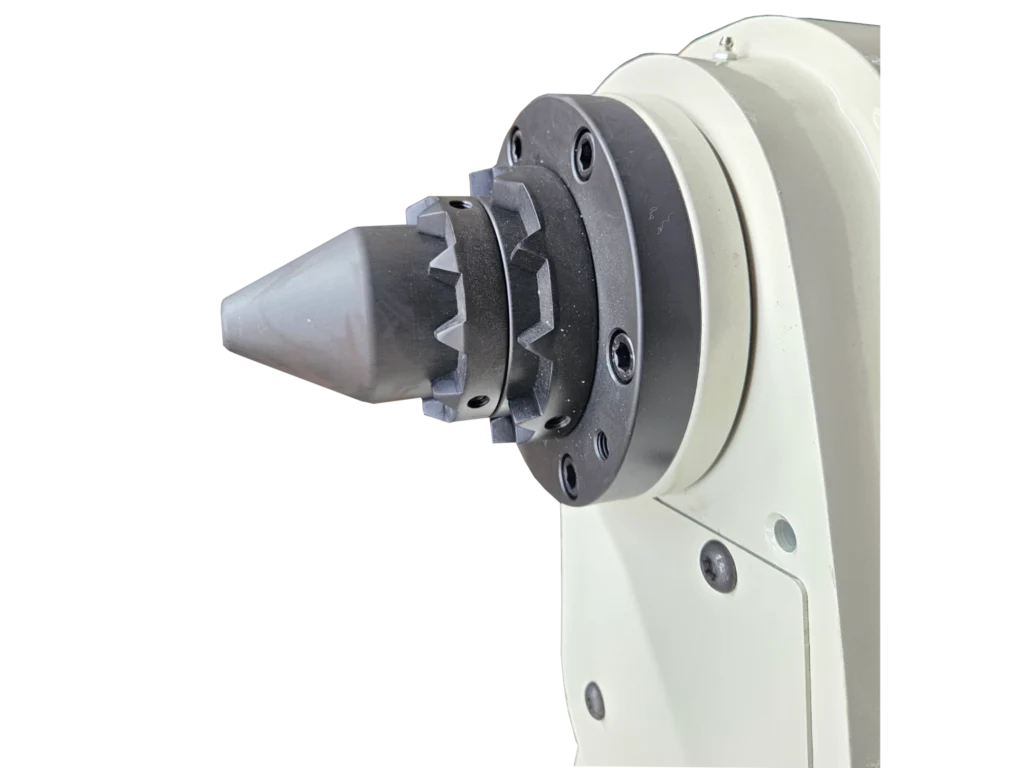

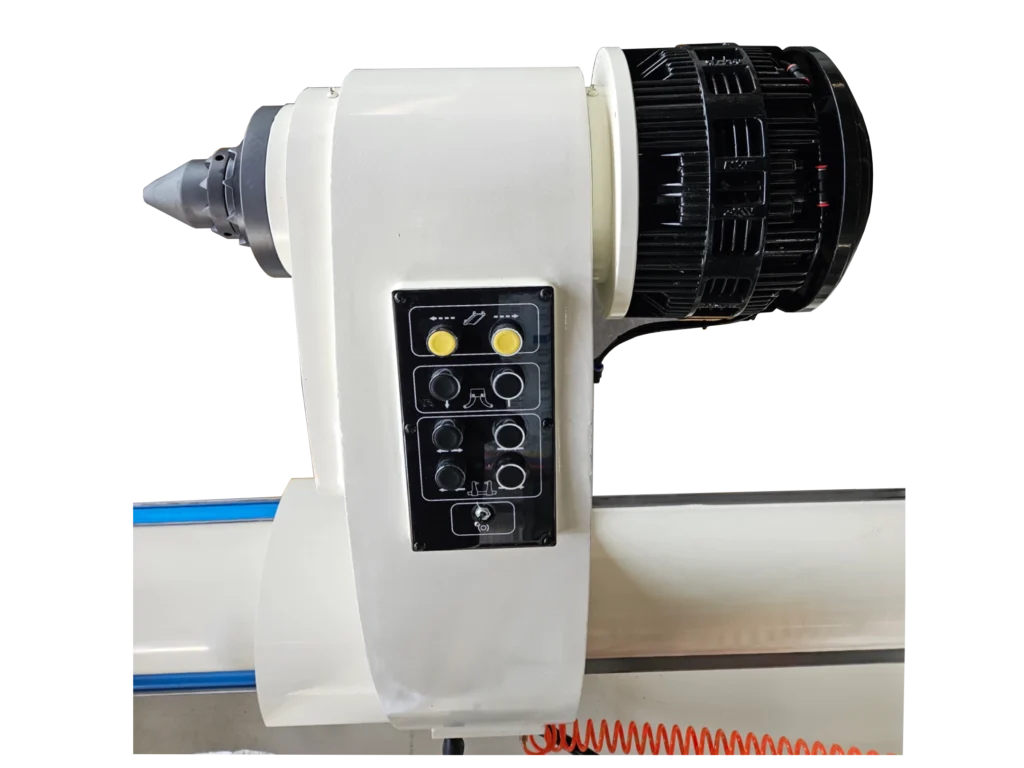

JUGGED OR BULGY CHUCK
Choose a jugged (toothed) chuck or a bulgy (expansion) chuck to match the roll cores running on your corrugated roller machine line.
OPTIONAL HYDRAULIC RAILWAY & LIFT-UP
Add a hydraulic railway with hydraulic lift-up for plants that need to shuttle rolls a longer distance before staging them at the stand.

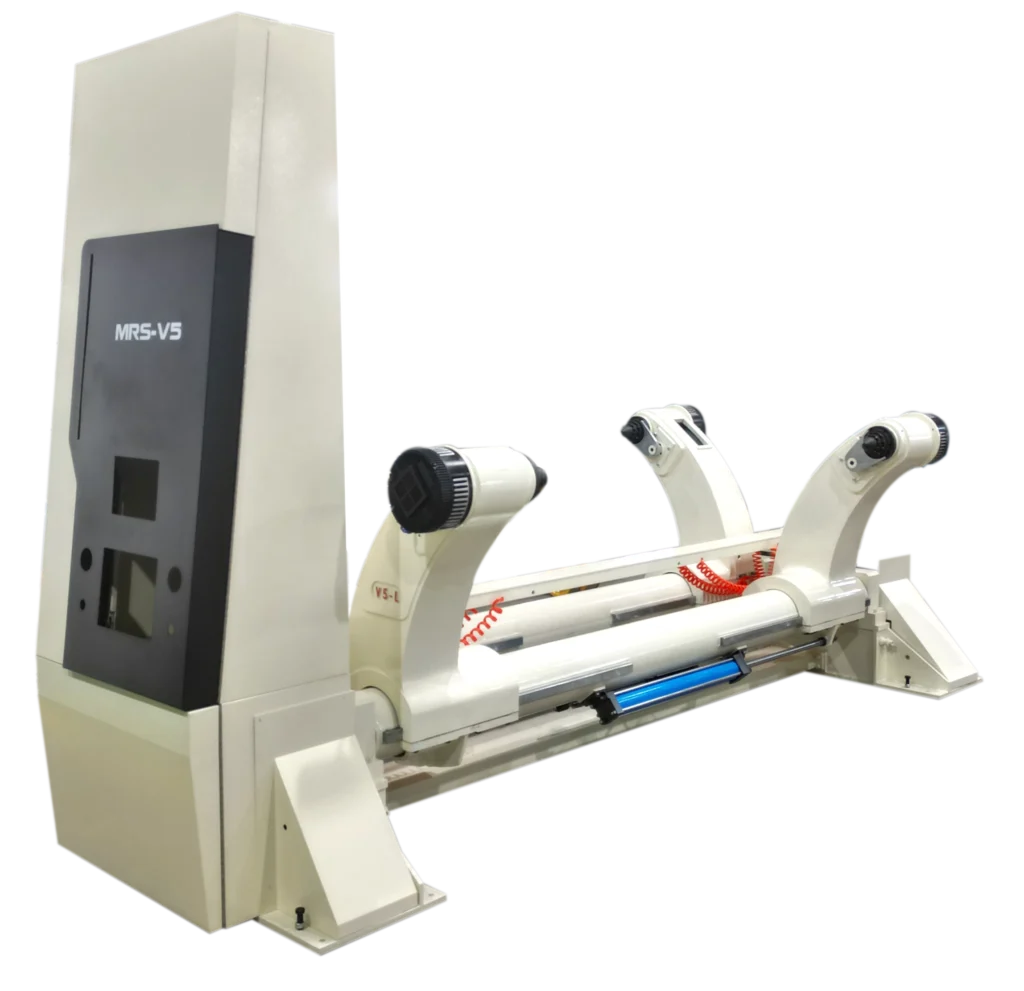

IMPORTED MULTI-POINT BRAKE / NEW DESIGN
Step up to an imported multi-point brake for finer tension control, or order the MRS-V5 in our newer stand design — both available as options.
TECHNICAL SPECIFICATIONS
Figures below reflect the standard swing-type configuration. Contact us for line-matching, plant layout, or optional upgrades.
| STAND TYPE | Swing type |
| MAX. PAPER ROLL DIAMETER | 1,600 mm |
| CLAMPING / POSITIONING / LIFT | Full hydraulic operation (open-close, right-left, lift-lower) |
| TENSION CONTROL | Air brake, manual adjustment |
| CHUCK TYPE | Jugged (toothed) or bulgy (expansion) |
| OPTION — HYDRAULIC RAILWAY | Hydraulic railway with hydraulic lift-up |
| OPTION — TENSION CONTROL | Imported multi-point brake |
| OPTION — STAND DESIGN | New design available |

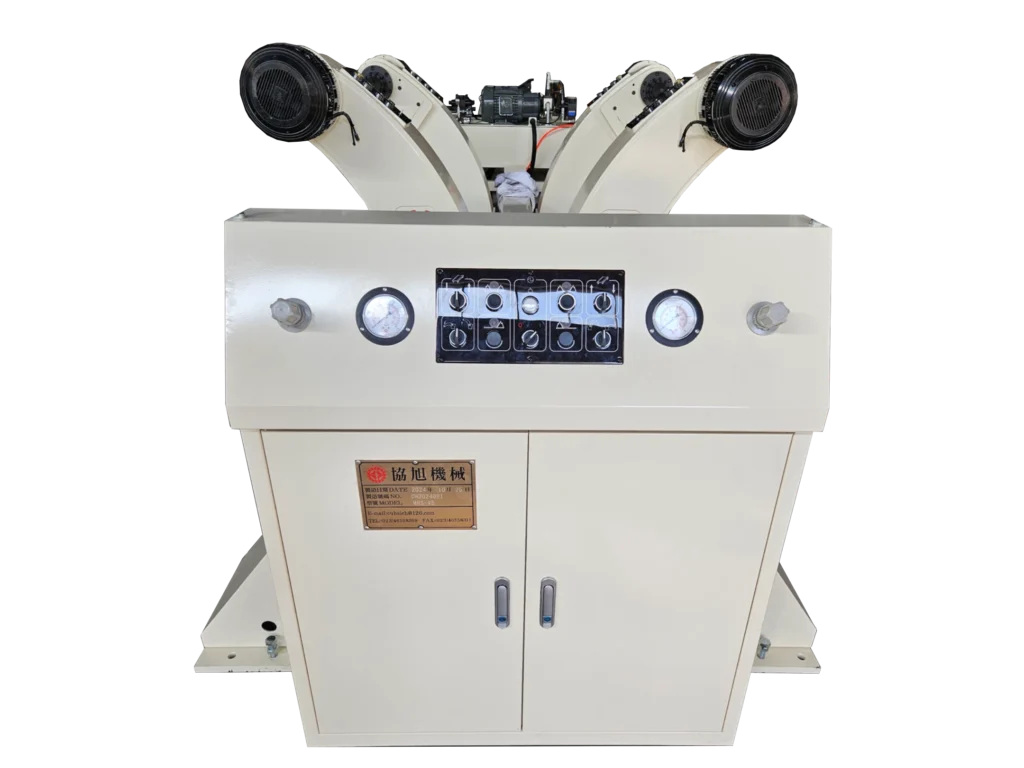

HYDRAULIC SHAFTLESS MILL ROLL STAND GALLERY

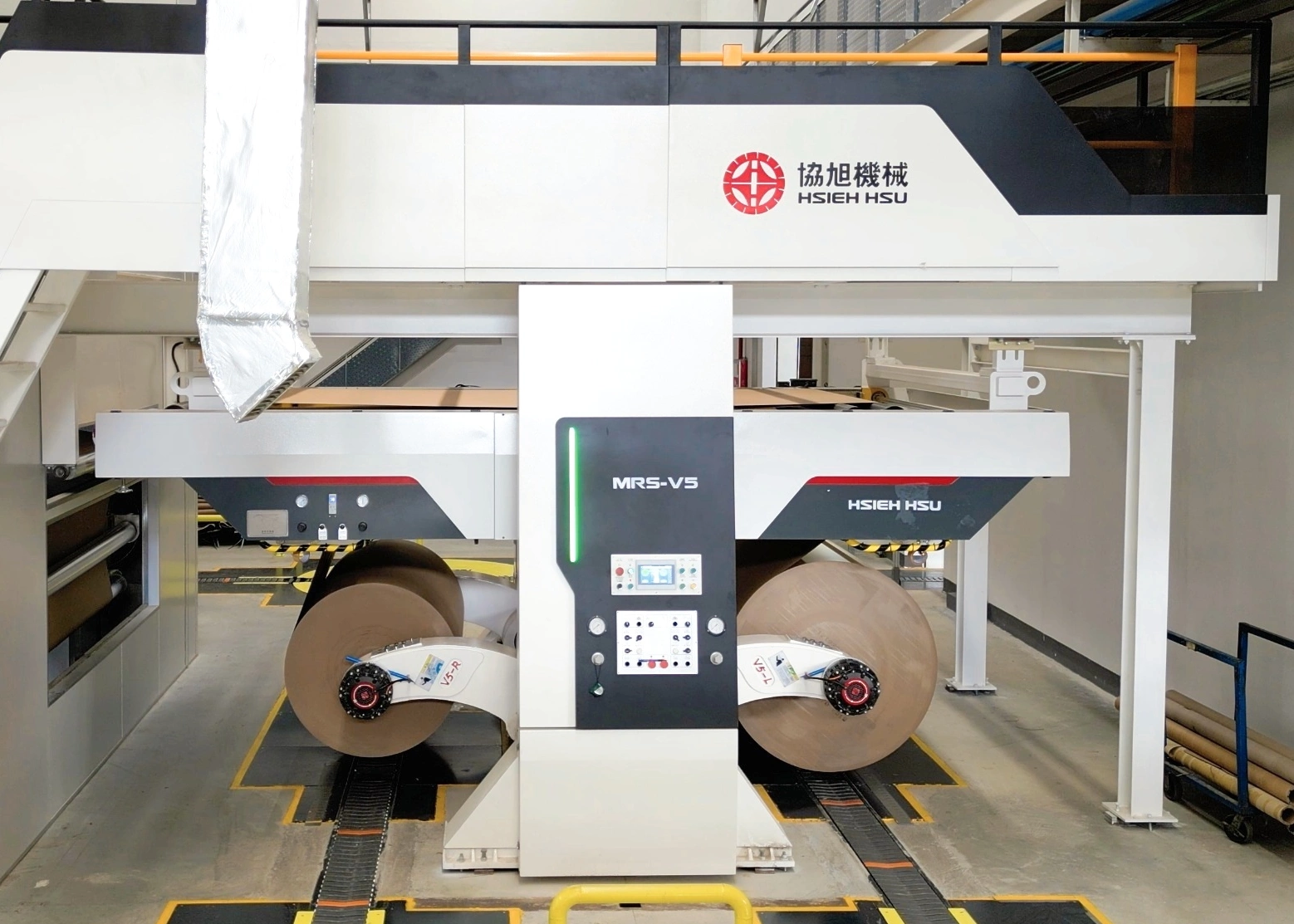

Explore detailed photos of the hydraulic system, paper chucks, lifting mechanism, and installed equipment used in corrugated cardboard production lines.
