NEW TYPE TRIPLEX OVERHEAD BRIDGE CONVEYOR BC-S4,BC-D4,BC-T4
NEW TYPE OVERHEAD
BRIDGE CONVEYOR

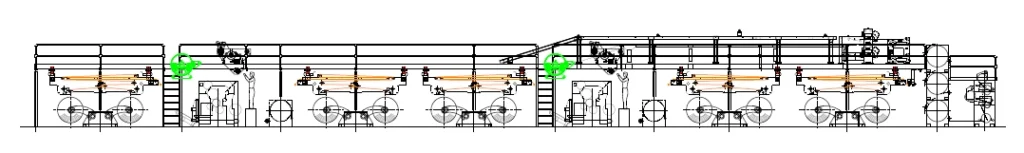

A steel-framed overhead bridge that lifts and guides single-faced board from the single facer across to the fourfold preheater. Independently driven elevator and conveying platform keep the web tracking steady at line speed.
STEADY WEB TRANSFER AT LINE SPEED
The bridge conveyor’s frame, drives and guiding are built to keep single-faced board tracking cleanly on its way to the preheater, without slowing the rest of the line down.
8″ Channel Steel Main Frame
The main frame is built from 8-inch steel channel for a rigid structure that supports the elevator and conveying platform at height.

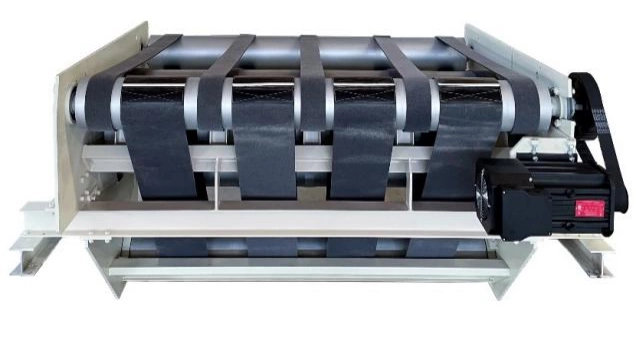

Upper Guide Conveyor
Three upper guide conveyor sets are installed above each single facer, keeping the web aligned as it’s picked up.
Horizontal Multi-Stream Conveyor
A three-stream horizontal conveyor guides single-faced board from the single facer across to the fourfold preheater.

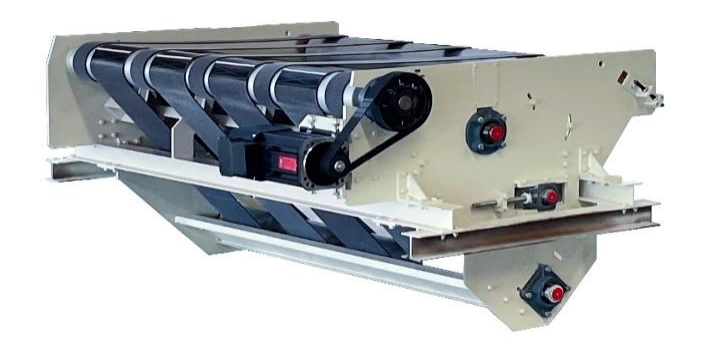

Independently Driven Elevator & Platform
The elevator and the conveying platform each run on independent transmission, so hoist and horizontal transfer are controlled separately.

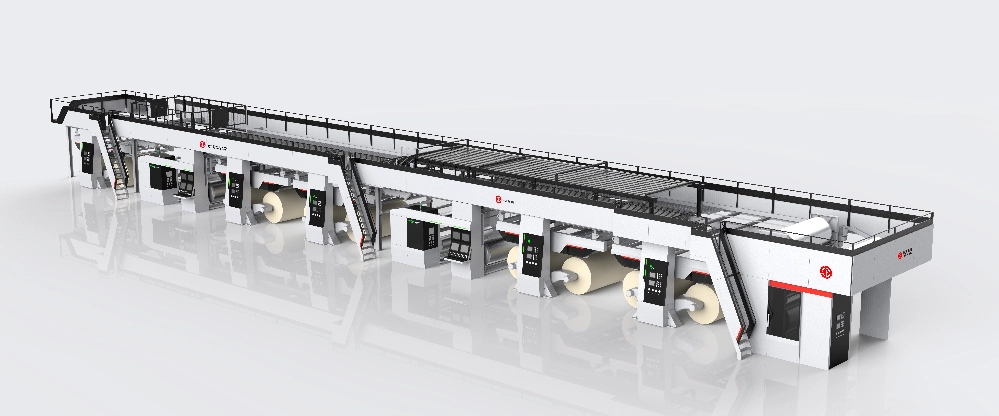

Safety Rails & Staircases
Safety rails are fitted on both sides of the walkway, with staircases for safe operator access at working height.
TECHNICAL SPECIFICATIONS
Core structural and drive specifications for the overhead bridge conveyor.
| PARAMETER | SPECIFICATION |
|---|---|
| Machine Type | Overhead Bridge Conveyor (New Type) |
| Model Range | BC-S4 (single-stream) / BC-D4 (double-stream) / BC-T4 (triple-stream) |
| Main Frame | 8″ channel steel |
| Upper Guide Conveyor | 3 sets installed upon each single facer |
| Horizontal Conveyor | Multi-stream (3 streams shown); guides single face from single facer to fourfold preheater |
| Elevator Drive | Independently driven, separate transmission from conveying platform |
| Conveying Platform Drive | Independently driven, separate transmission from elevator |
| Safety | Safety rails on both sides, with staircases for operator access |
