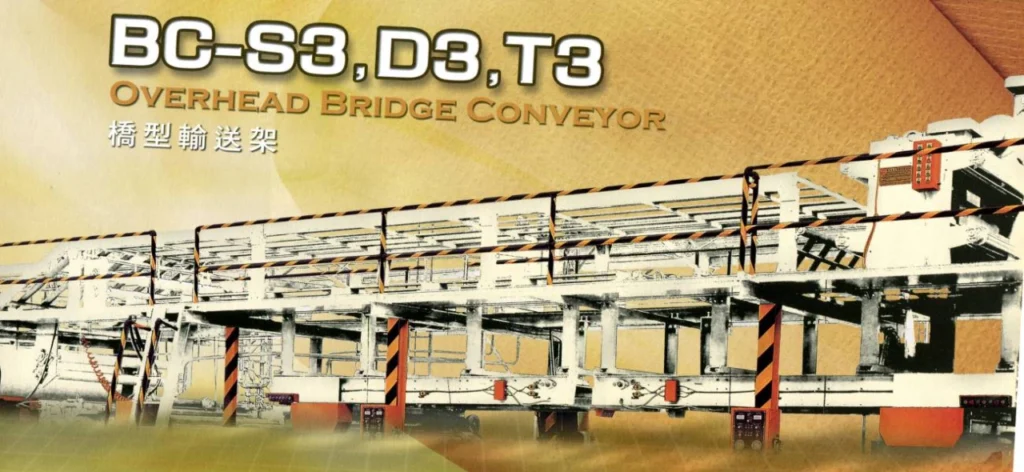

OVERHEAD BRIDGE CONVEYOR BC-S3,BC-D3,BC-T3
OVERHEAD BRIDGE CONVEYOR
Single, double and triplex bridge conveyors that lift single-faced board from each single facer and guide it to the double, triplex or fourfold preheater — with digital width tracking, pneumatic suction-brake tension control, and dual operation panels.
SIZED TO YOUR BOARD TYPE
Single Bridge Conveyor
One conveyor layer, for lines feeding a double preheater.
Double Bridge Conveyor
Two conveyor layers, for lines feeding a triplex preheater.

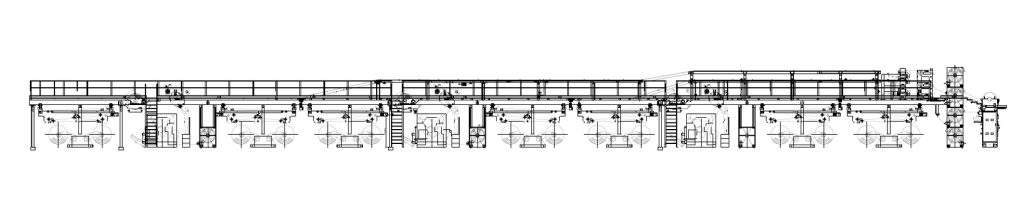

Triplex Bridge Conveyor
Three conveyor layers, for lines feeding a fourfold preheater.
STEADY, TRACKABLE WEB TRANSFER
Beyond simply lifting board across the line, the BC series tracks paper position, holds tension, and gives operators control from either end of the bridge.
Upper Guide Conveyor
One upper guide conveyor set is installed above each single facer, picking up single-faced board as it leaves the facer.
Level-Type Horizontal Conveyor
1, 2 or 3 conveyor layers guide single-faced board from each single facer to the double, triplex or fourfold preheater.
Digital Width Tracking
Paper width and left-right position are adjusted by an electric device, with a digital display for repeatable setup.
Suction-Brake Tension Control
A suction-brake device on the bridge holds the board flat, with board tension controlled — and adjustable — by pneumatic system.
Dual Operation Panels
Two operation panels let staff run the bridge from either the upper bridge or the lower bridge, whichever suits the task.
Safety Rails & Staircases
Safety rails are fitted on both sides of the walkway, with staircases for safe operator access at working height.
TECHNICAL SPECIFICATIONS
Core structural, tracking and control specifications for the overhead bridge conveyor. Layer count, span and platform height are configured to your line — contact us for a specification matched to your facers and preheater.
| PARAMETER | SPECIFICATION |
|---|---|
| Machine Type | Overhead Bridge Conveyor |
| Model Range | BC-S3 (single) / BC-D3 (double) / BC-T3 (triplex) bridge conveyor |
| Layer Configuration | 1, 2 or 3 level-type conveyors, matched to double, triplex or fourfold preheater |
| Upper Guide Conveyor | 1 set installed above each single facer |
| Width Adjustment | Electric, with digital value display |
| Tension Control | Suction-brake device; board tension controlled and adjustable by pneumatic system |
| Operation Panels | 2 sets — operable from upper bridge or lower bridge |
| Safety | Safety rails on both sides, with staircases for operator access |
